Trailer Tow Connector - Installation

INSTALLATION





1. Insert the trailer tow connector (3) into the bracket (2) on the trailer hitch receiver with the 7-pin connector oriented toward the outboard side of the bracket.

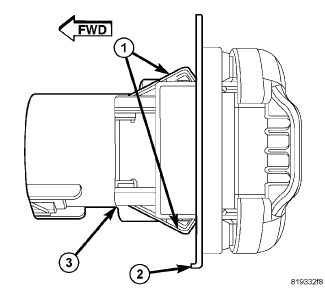

2. Using hand pressure, press the connector firmly and evenly into the bracket until both spring clips (1) on the connector housing snap into place on the back side of the bracket.

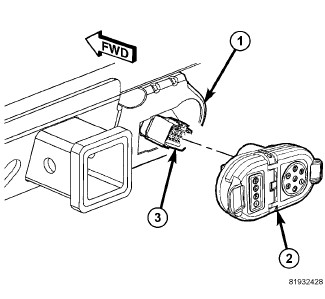

3. Reach behind the bracket (1) to access and reconnect the connector (3) of the body wire harness to the connector receptacle on the back of the trailer tow connector housing (2).
4. Reconnect the battery negative cable. On vehicles equipped with the optional Hybrid Electric Vehicle (HEV) system, a technician trained in proper HEV service safety procedures must also reinstall the high voltage service disconnect into the high voltage battery pack.
