Speaker - Removal






REMOVAL

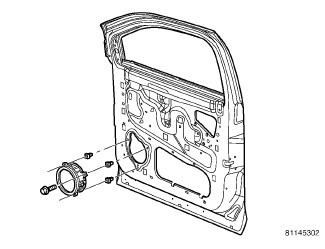

FRONT DOOR





1. Disconnect and isolate the battery negative cable.
2. Remove the front door trim panel Front Door Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Remove speaker and disconnect the electrical harness connector.

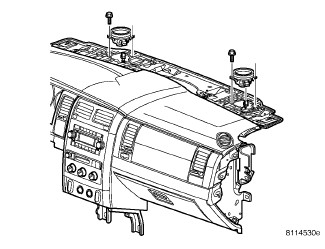

INSTRUMENT PANEL





1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel defroster grille Defroster Grille - Removal.
3. Remove the mounting fasteners.
4. Remove speaker and disconnect the electrical harness connector.

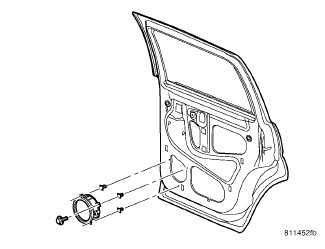

REAR DOOR





1. Disconnect and isolate the battery negative cable.
2. Remove the rear door trim panel Rear Door Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Remove speaker and disconnect the electrical harness connector.

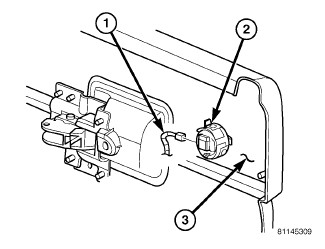

REAR DOOR TWEETER





1. Disconnect and isolate the battery negative cable.
2. Remove the rear door trim panel Rear Door Trim Panel - Removal.
3. Disconnect the electrical harness connector (1) and remove tweeter (2).

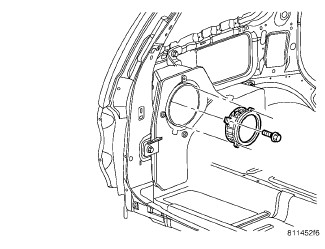

SUBWOOFER





1. Disconnect and isolate the battery negative cable.
2. Remove the quarter panel trim Quarter Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Remove speaker and disconnect the electrical harness connectors.
