Speaker - Installation

INSTALLATION

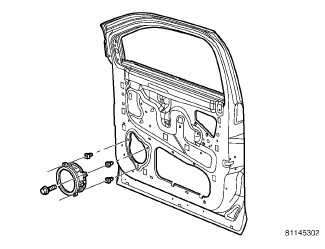

FRONT DOOR





1. Connect electrical harness connector and position speaker to door.
2. Install and tighten mounting fasteners.
3. Install door trim panel Front Door Trim Panel - Installation.
4. Connect battery negative cable.

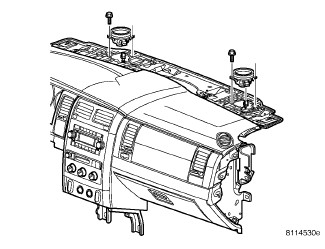

INSTRUMENT PANEL





1. Connect electrical harness connector and position speaker to instrument panel.
2. Install and tighten mounting fasteners.
3. Install instrument panel top cover.
4. Connect battery negative cable.

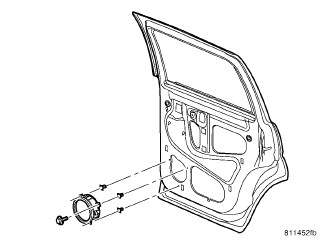

REAR DOOR





1. Connect electrical harness connector and position speaker to door.
2. Install and tighten mounting fasteners.
3. Install door trim panel Rear Door Trim Panel - Installation.
4. Connect battery negative cable.

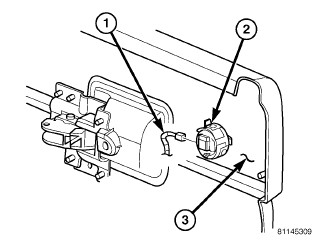

REAR DOOR TWEETER





1. Connect electrical harness connector and position speaker to door trim panel.
2. Install and tighten mounting fasteners.
3. Install door trim panel Rear Door Trim Panel - Installation.
4. Connect battery negative cable.

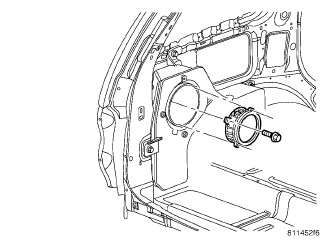

SUBWOOFER





1. Connect electrical harness connector and position speaker.
2. Install and tighten mounting fasteners.
3. Install quarter panel trim Quarter Trim Panel - Installation.
4. Connect battery negative cable.
