Radio - Removal






REMOVAL






NOTE: REQ radios only must be put into "Transportation Mode" before removal. With Ignition in RUN or ACCESSORY, press SET and DISK simultaneously until the radio displays "TRANSPORTATION" on the display or for 5 seconds.

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel Instrument Panel Bezel - Removal.

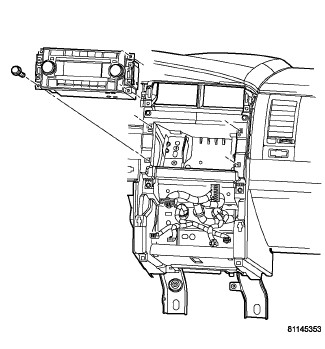

3. Remove the radio mounting fasteners.






CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

4. Disconnect the antenna cable(s).
5. Disconnect the electrical connectors and remove radio.
