Radio - Installation

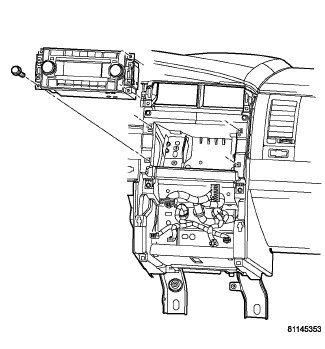

INSTALLATION





1. Connect the electrical connectors and antenna cable(s) to the radio.





2. Position the radio into the instrument panel, and install the mounting fasteners.
3. Install the instrument panel center bezel Instrument Panel Bezel - Installation.

NOTE: REQ RADIO, After installation of the radio, remove the radio from "Transportation Mode" by pulling the IOD fuse or using the scan tool and perform a battery reset.
