Amplifier - Removal

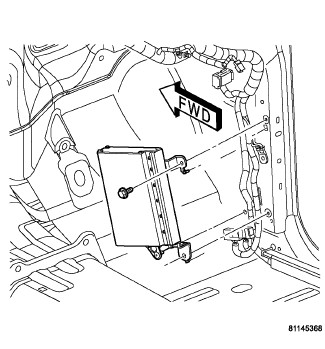

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the right side cowl trim.
3. Remove mounting fasteners.
4. Disconnect electrical harness connectors and remove amplifier.
