Video Screen Module C1 (Headliner) 22 Way

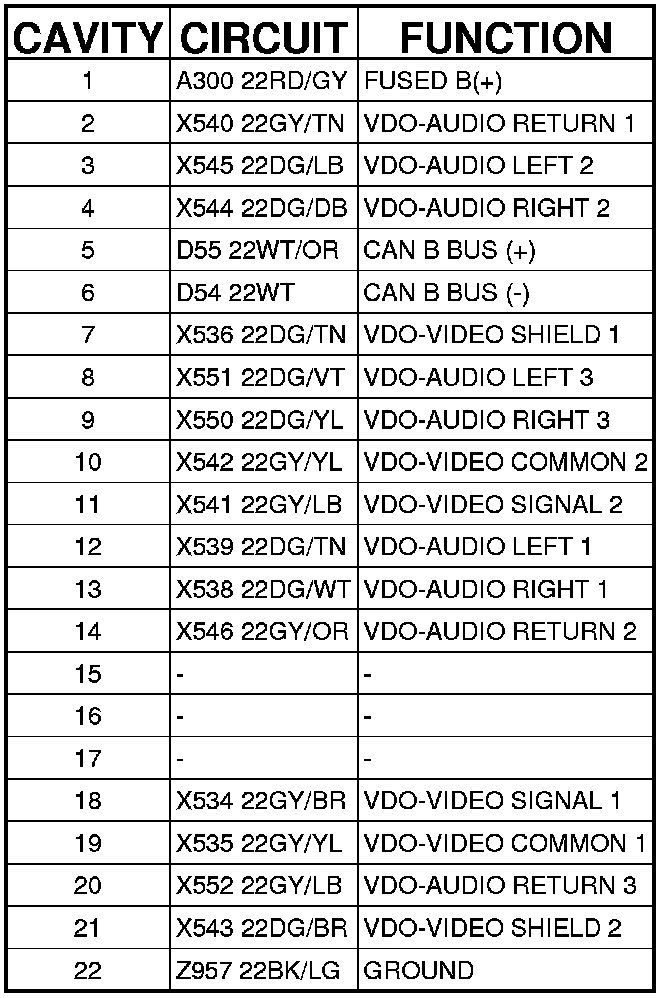

Connector C1 - (HEADLINER) 22 WAY




MODULE-VIDEO SCREEN - (HEADLINER) 22 WAY
