Media System - Removal

REMOVAL

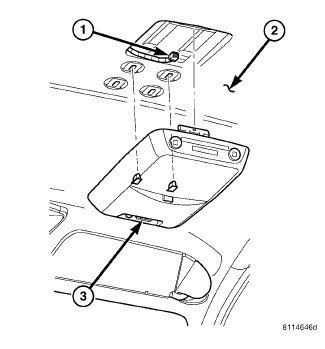

1. Disconnect and isolate the battery negative cable.
2. Remove the two mounting fasteners.
3. Using a trim stick, press the retaining clip at the rear of the DVD player. Move the DVD player from side to side to release from roof panel (2).
4. Disconnect electrical harness connector (1) and remove DVD player.
