Hands Free Module (HFM) - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

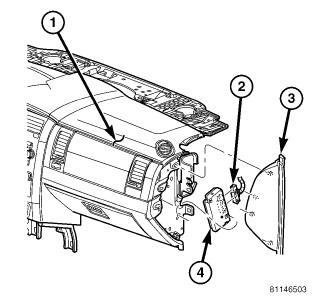

2. Remove the instrument panel end cap (3).
3. Remove the glove box.
4. Remove the door scuff plate.
5. Remove the cowl trim panel.
6. Remove the mounting fasteners.
7. Disconnect the electrical harness connector and remove the module (4).
