Satellite Radio Antenna Mast - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

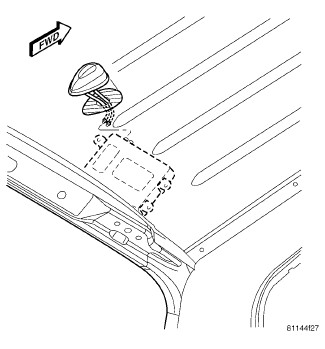

2. Lower the rear portion of the headliner as necessary to access underside of antenna Headliner - Removal.

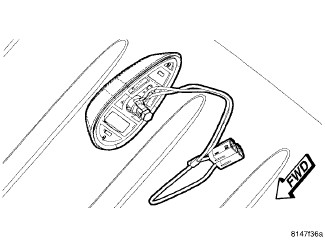

3. Disconnect the wire harness connectors from the antenna.
4. Remove fastener and retainer.





5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
