Instrument Panel Antenna Cable - Installation

INSTALLATION

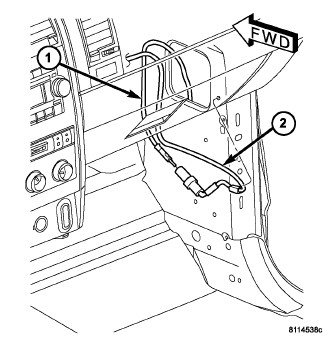

1. Insert the cable through the radio opening. Route behind the glove box and attach to the retainers.




2. Connect the electrical and antenna connectors.
3. Install the radio Radio - Installation.
4. Install the cowl trim Cowl Trim Panel - Description.
5. Connect the cable.
