Navigation Radio Antenna - Removal

REMOVAL

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.





1. Disconnect and isolate the battery negative cable.
2. Remove the radio Radio - Removal.
3. Remove the instrument panel defroster grille Defroster Grille - Removal.

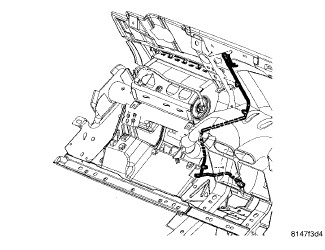

4. Remove the passenger airbag Passenger Air Bag - Removal.

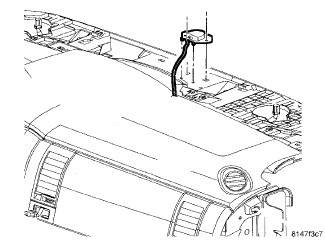

5. Remove the antenna mounting fasteners.





6. Remove the navigation radio antenna.
