Navigation Radio Antenna - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

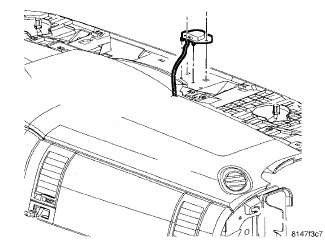

1. Position antenna to instrument panel.

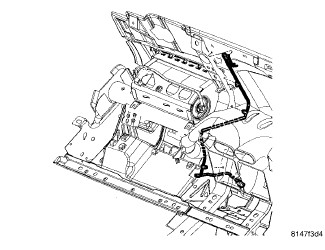

2. Connect antenna to radio.
3. Install radio Radio - Installation.





4. Install and tighten mounting fasteners.
5. Install instrument panel defroster grille Defroster Grille - Installation.
6. Install passenger airbag Passenger Air Bag - Installation.
7. Connect battery negative cable.
