Home >> Dodge and Ram >> 2009 >> Caliber L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Track >> Service and Repair >> Rear Door Glass Channel - Removal

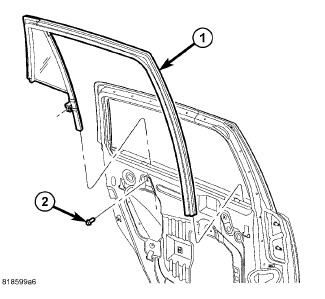

Rear Door Glass Channel - Removal






REMOVAL





1. Remove door module. Rear Door Carrier Plate - Removal.
2. Remove glass run fastener (2).
3. Remove glass run from door.
