Rear Door Glass - Installation

INSTALLATION





1. Install window regulator to door panel. Rear Door Window Regulator - Installation

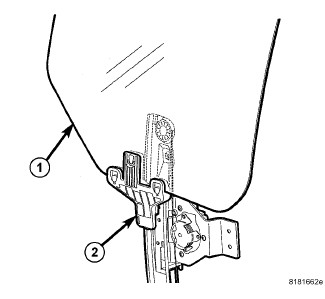

2. Install glass (1) down through window channel into window regulator (2) ensuring glass properly seats in access holes.
3. Connect wire connectors.
4. Install door module.Rear Door - Installation
5. Install bolster.Rear Door Trim Panel Bolster - Installation
6. Install speaker and grille.Speaker - Removal
