Shift Rail Bushing(s) - Removal






REMOVAL

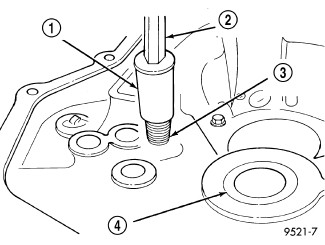

1. Thread Remover 6786 (1) into shift rail bushing.
2. Install slide hammer C-3752 (2) onto tool.
3. Remove bushing (3) using slide hammer and tool assembly.
