Input Bearing and Race - Removal

REMOVAL

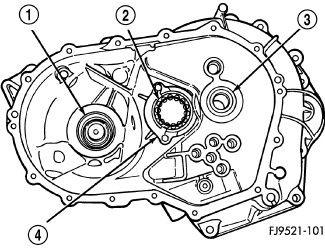

The input bearing (3) is a one-piece bearing and sleeve unit. The sleeve is the slide point for the clutch-release bearing and lever.





1. Install Puller 9585 (2) and Slide Hammer C-637 (1) over into bearing on the gear case side of the transaxle clutch housing (4).
2. Pull the input bearing (3) out of the housing.
