Input Bearing and Race - Installation

INSTALLATION





1. Apply coating of Loctite(R) sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.

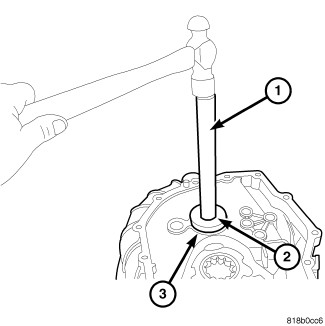

2. Using Installer 5064 (2) and Handle C-4171 (1) install input bearing (3) into bore until it is fully seated.
