Removal

REMOVAL





1. Raise the vehicle on a hoist.
2. Remove the left front tire.
3. Remove the left front splash shield.
4. Drain the coolant.

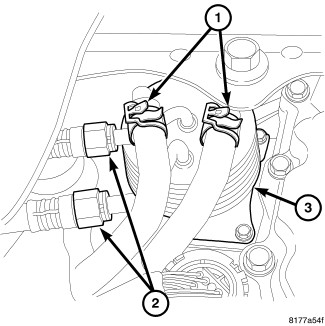

5. Remove the transmission lines (2) at the cooler (3).
6. Remove the coolant lines (1) at the cooler.
7. Remove the mounting bolts at the cooler.
8. Remove the cooler from the transmission.





9. Remove the fluid filter (1).
