Power Steering Cooler - Installation

INSTALLATION

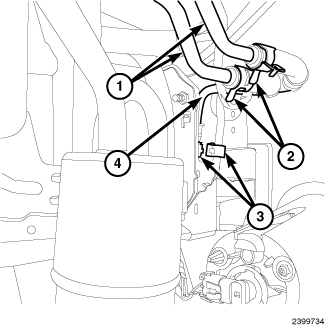

1. Install the cooler tubes in the clips (3) on the side of the frame rail.
2. Install the fluid return hose (1) on the power steering fluid cooler lines (4). Install the hose clamps (2) on the hoses past the bead formed into the end of the cooler tube and secure in place.
3. Install the right front splash shield Splash Shield - Installation
4. Install tire and wheel assembly Tires and Wheels - Installation
5. Lower the vehicle.
6. Fill and bleed the power steering system. Power Steering System Bleeding
7. Check for leaks.
