Fog Lamp - Removal

UNIT

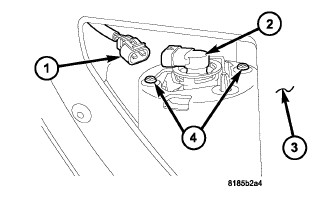

1. Disconnect and isolate the battery negative cable.
2. Reach up through the lower fascia (3) cutout.
3. Disconnect electrical connector from fog lamp (1).

NOTE: It may be necessary to twist out the fog lamp bulb (2) to release fog lamp unit from fascia.

4. Remove screws attaching fog lamp to fascia (4).
5. Push fog lamp forward to remove from fascia.
