Fog Lamp Bulb - Removal






BULB

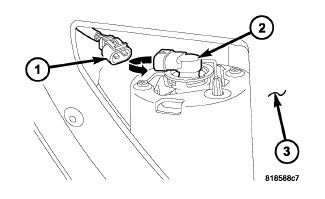

1. Disconnect and isolate the battery negative cable.
2. Reach up through the lower fascia (3) cutout.
3. Disconnect the fog lamp connector (1).
4. Twist the bulb (2) counterclockwise to remove from lamp unit.
