Instrument Cluster - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel upper panel Instrument Panel Pad - Removal.

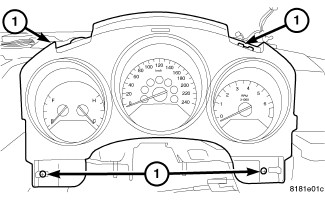

3. Remove the four retaining screws (1) to the instrument cluster bezel.





4. Pull instrument cluster rearward to expose the four electrical connectors.
5. Disconnect the electrical connectors and remove cluster from instrument panel.
6. Separate cluster bezel from cluster by removing the four retaining screws (1).
