C202 (Instrument Panel Side) 20 Way
C202 (Instrument Panel Side) 20 Way

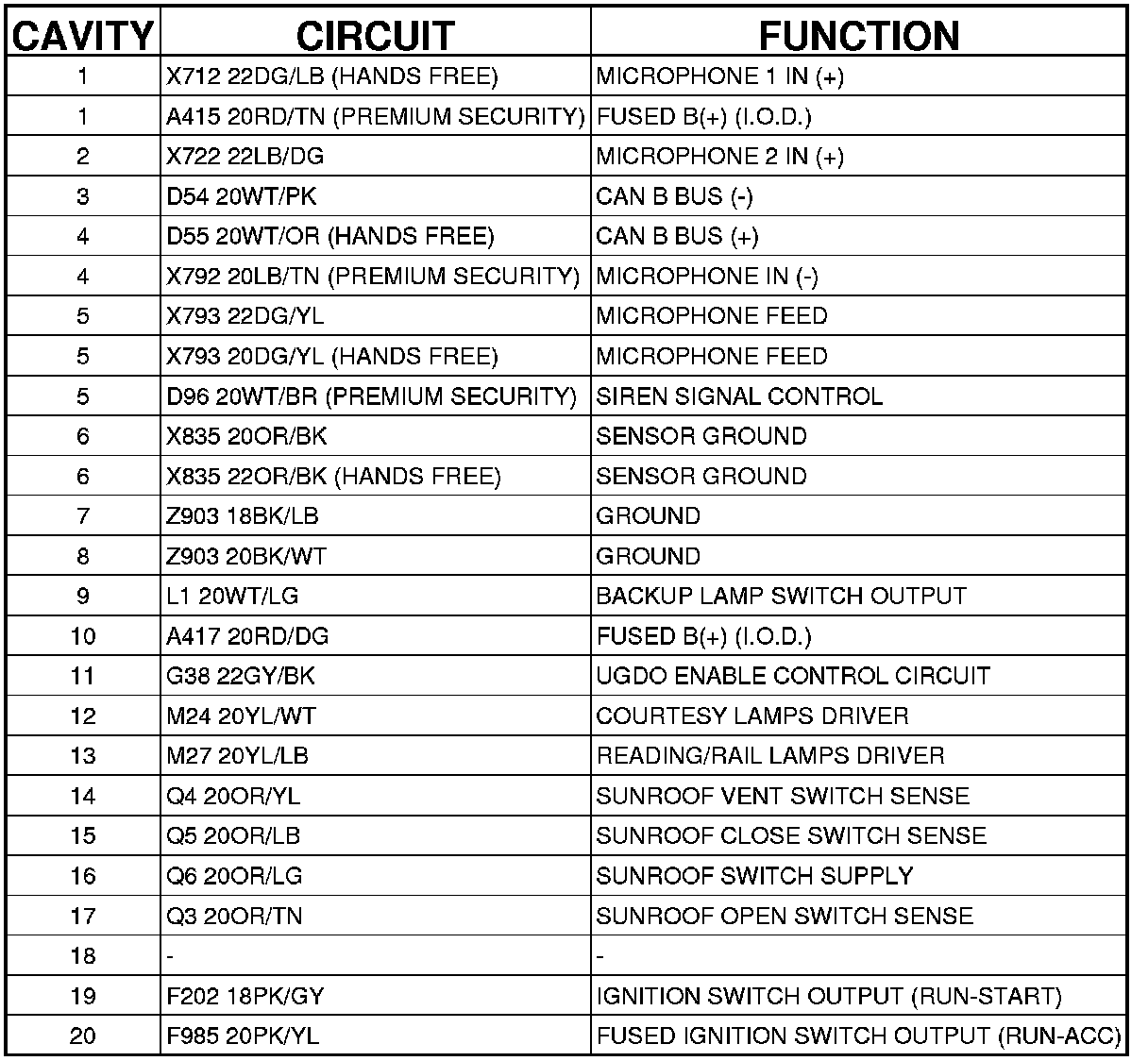

Connector - (INSTRUMENT PANEL SIDE) 20 WAY
C202 - (INSTRUMENT PANEL SIDE) 20 WAY
