C103 (Engine Compartment Side) 34 Way
C103 (Engine Compartment Side) 34 Way

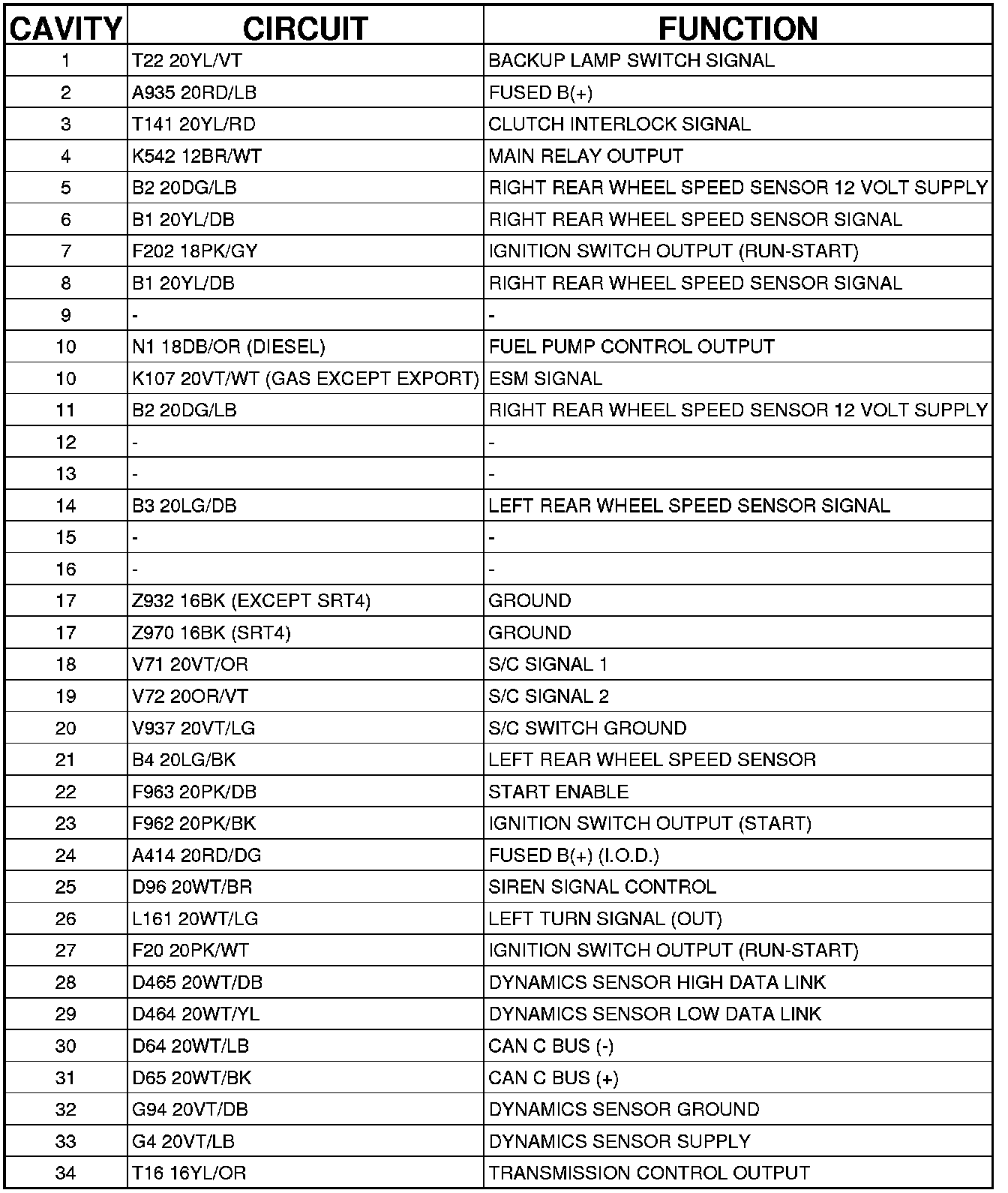

Connector - (ENGINE COMPARTMENT SIDE) 34 WAY
C103 - (ENGINE COMPARTMENT SIDE) 34 WAY
