A-Pillar Trim Panel-Removal
A-Pillar Trim Panel-Removal
REMOVAL
1.

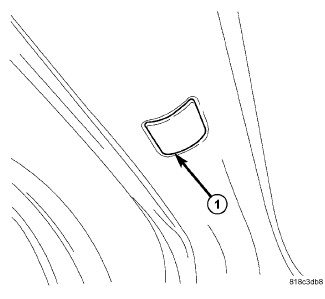

Using special tool C-4755, remove plug (1) from A-pillar.
2.
Remove screw.
3.
Remove A-pillar trim.
