Instrument Panel Cover - Removal
REMOVAL
1. Remove A- pillar trim. A-Pillar Trim Panel-Removal

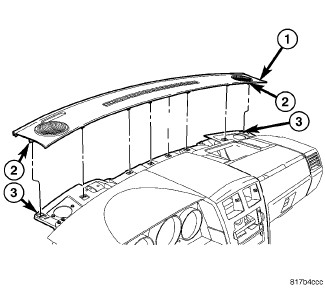

2. Using trim stick C-4755, pry up on panel cover (1) disengaging panel clip (2) from instrument panel inner (3).
3. Remove from vehicle.
REMOVAL
1. Remove A- pillar trim. A-Pillar Trim Panel-Removal
2. Using trim stick C-4755, pry up on panel cover (1) disengaging panel clip (2) from instrument panel inner (3).
3. Remove from vehicle.
