Lower Without Speaker

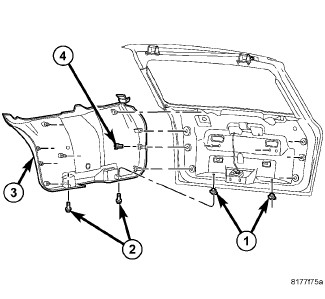

REMOVAL





1. Remove upper liftgate molding.
2. Remove liftgate upper side molding.
3. Remove liftgate screws (2) from liftgate nuts (1).
4. Using special tool C-4755, pry up liftgate trim tabs (4) from liftgate.
5. Remove lower liftgate trim (3) from vehicle.
