Electronic Vehicle Information Center - Installation

INSTALLATION

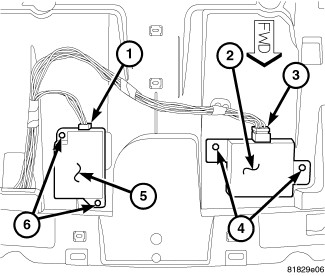

NOTE: RHD model shown in illustration. LHD model similar.

1. Position the Remote Compass Module (RCM) (5) on top of the instrument panel.
2. Install the screws (6) that secure the RCM to the instrument panel.
3. Connect the RCM electrical connector (1).
4. Install the instrument panel upper panel, Instrument Panel Pad - Installation.
5. Connect the battery negative cable.
