Front Fore and Aft

REMOVAL





1. Raise and support the vehicle Maintenance.

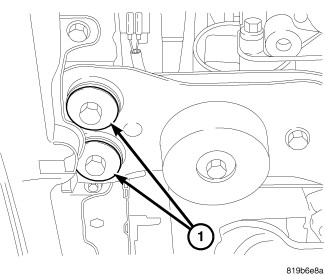

2. If equipped, remove the two front cross-member bolts (1).

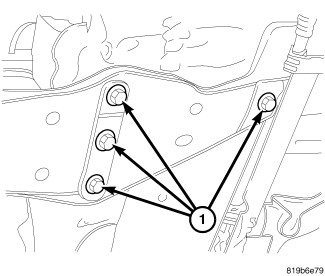

3. Remove the four cross-member bolts (1) in the rear of the fore/aft cross-member.

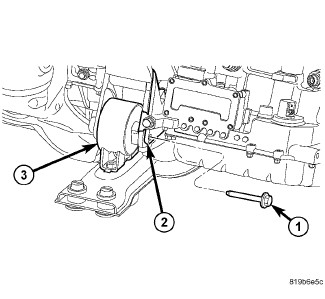

4. Remove the engine roll mount (2) through bolt (1) and remove the fore/aft cross-member.
