Driver Air Bag Cover - Removal

COVER





1. Open hood.
2. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

3. Remove the driver airbag Driver Air Bag - Removal.

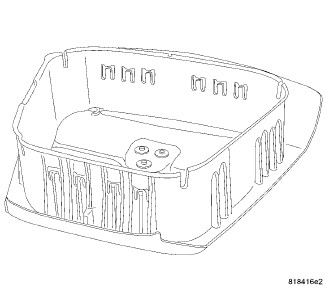

4. With driver airbag removed, pick a corner and push down on the inflator or latch hook mounting plate (1) until the latch hooks (2) push out of the driver airbag cover (3).





5. Starting at a point on the airbag, work your way around the airbag until all the hooks have been released.
6. Remove driver airbag trim cover from driver airbag.
