Transmission Solenoid - Removal

REMOVAL










1. Remove the valve body from the transmission Valve Body - Removal.

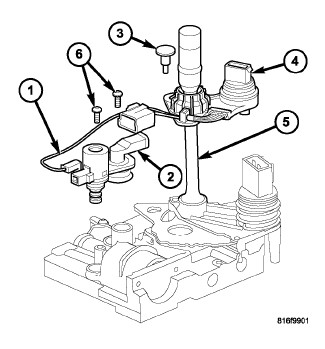

2. Remove the electrical connectors from the Pressure Control Solenoid (1) and the Line Pressure Sensor (2).
3. Remove the screws (6) holding the Pressure Control Solenoid (1) and Line Pressure Sensor (2) to the valve body.
4. Remove the pressure control solenoid and line pressure sensor from the valve body.
