Rear Hub and Bearing - Removal

FRONT-WHEEL-DRIVE

NOTE: Before proceeding, Vehicle Damage Warnings .

1. Raise and support the vehicle. Maintenance





2. Remove the wheel mounting nuts (3), then the rear tire and wheel assembly.

3. If equipped with rear disc brakes, access and remove the rear brake rotor (3). Brake Rotor - Removal
4. If equipped with rear drum brakes, access and remove the rear brake drum. Removal

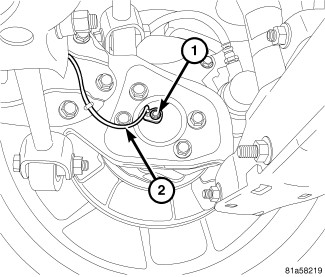

5. Remove the screw (1) fastening the wheel speed sensor (2) head in the rear of the hub and bearing.

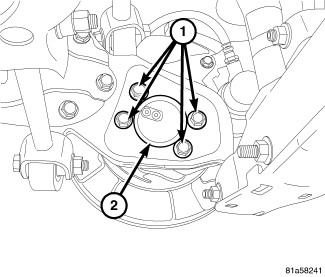

6. Remove the four bolts (1) securing the hub and bearing (2) to the knuckle.
7. Remove the hub and bearing.
