Valve Tappet(s) - Installation

INSTALLATION






NOTE: If reinstalling original tappets they must go back in their original location or engine damage could result.

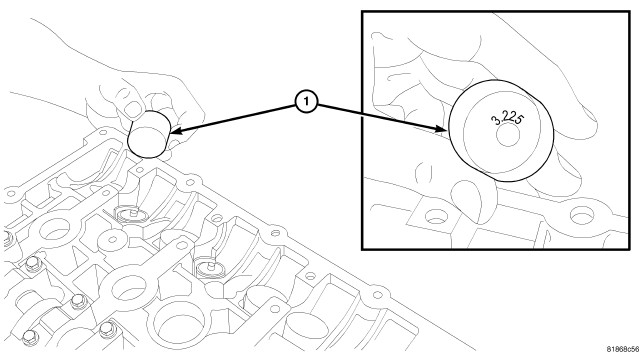

1. Apply a light coat of clean engine oil to camshafts tappets (1) prior to assembly.
2. Install camshaft tappets (1) into cylinder head.
3. Repeat installation procedure for each camshaft tappet.
4. Install camshaftsCamshaft - Installation.

NOTE: If installing new tappets, the valve lash procedure must be performed.

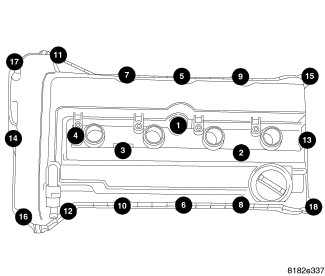

5. Install cylinder head coverCylinder Head Cover(s) - Installation.
