Cooling Fan - Removal






REMOVAL










1. Disconnect negative cable from auxiliary terminal.

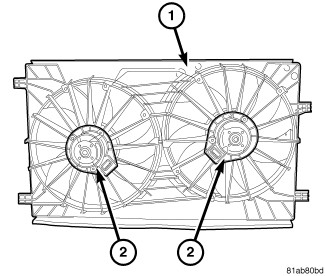

2. Disconnect radiator fan electrical connector.
3. Partially drain cooling system Service and Repair.
4. Remove upper radiator hose at radiator.
5. Remove fasteners and upper clip attaching fan assembly to radiator.
6. Remove radiator fan assembly by lifting upward.
