Cooling Fan - Description






DESCRIPTION

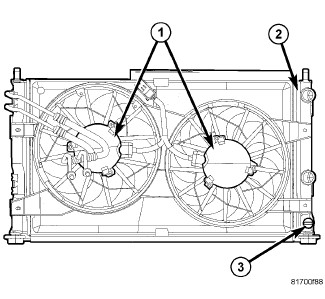

The radiator fan module includes a support shroud (2) with two electrically driven motors (1) with fan blades. The radiator fan module is fastened to the radiator.
