C301 (Passenger Door Side) 16 Way
C301 (Passenger Door Side) 16 Way

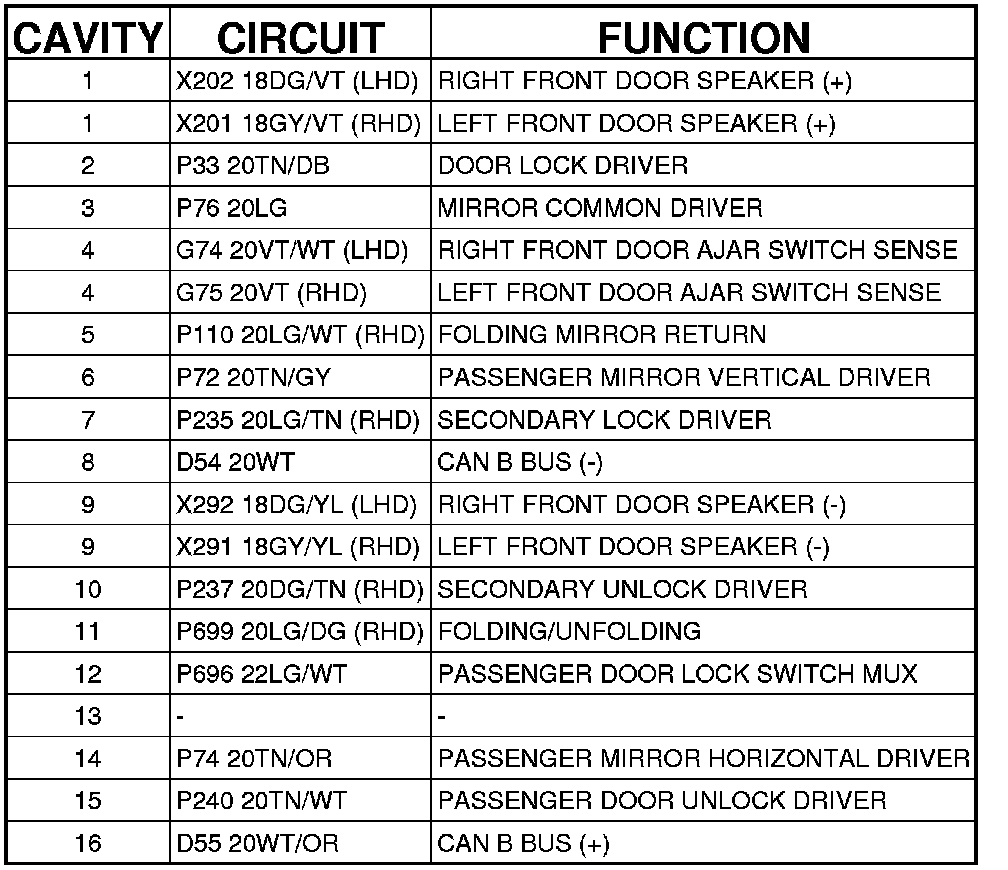

Connector - (PASSENGER DOOR SIDE) 16 WAY
C301 - (PASSENGER DOOR SIDE) 16 WAY
