Sunroof Drain Tube - Installation

INSTALLATION

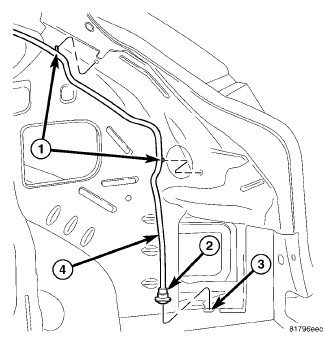

1. Install the rear hoses (4) and connect the grommets (2) to the body (3).
2. Connect the support clips (1).

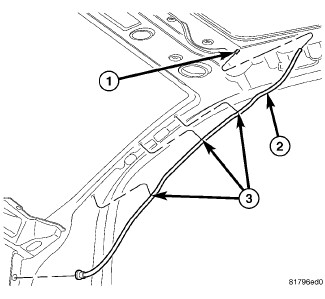

3. Route the hose as required and connect the remaining support clips (3).

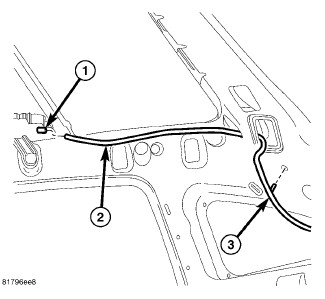

4. Connect the hoses (2) to the sunroof assembly (1).





5. Connect the front hose lower grommet to the body.
6. Connect the front hose (2) to the sunroof assembly (1) and connect the support clips (3).
