A-Pillar Trim Panel-Removal

REMOVAL





1. Using trim stick C-4755, disengage clips attaching A-pillar trim to A-pillar.

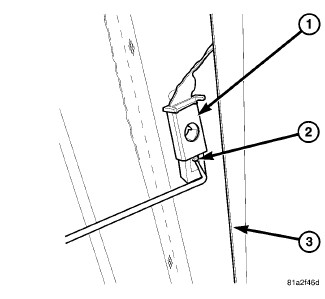

2. Using a screwdriver or equivalent, press downward disengaging tether clip (2) and slide from housing (1).





3. Remove A-pillar trim from vehicle.
