A-Pillar Trim Panel-Installation






INSTALLATION

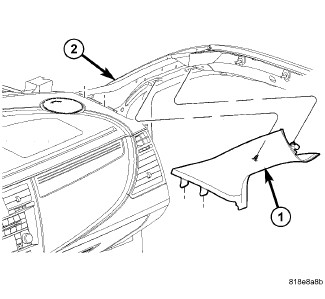

1. Place A-pillar trim into position.

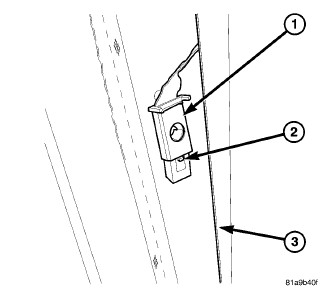

2. Slide tether downward through housing (1) until clip engages (2).
3. Firmly seat A-pillar trim into position.
