Cowl Trim Panel - Removal






REMOVAL





1. Remove door sill trim panel.Scuff Plate - Removal

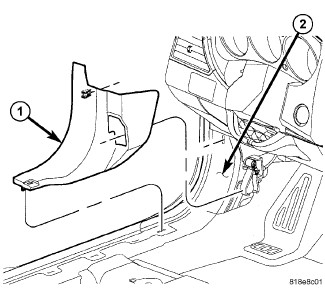

2. Using trim stick C-4755, disengage cowl trim panel (1) clips from the corresponding locations in the sheet metal (2).
3. Remove cowl trim panel (1) from vehicle.
