Grille - Removal






REMOVAL

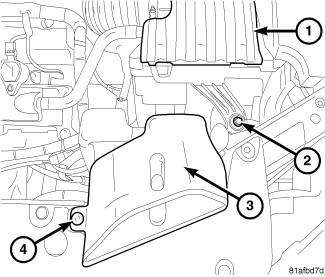

1. Remove air inlet push pin (4) and airbox fastener (2).





2. Remove grille push pins (2) and grille from vehicle.
