Hood Striker - Installation
Hood Striker - Installation

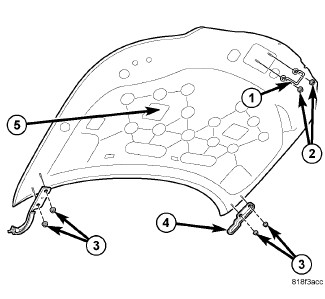

INSTALLATION
1.
Align striker (1) with holes in
hood
(5).
2.
Tighten nuts (2) to 9 Nm (79.7 in. lbs.)
