Rear Bumper Fascia - Installation

AVENGER





1. Raise vehicle.

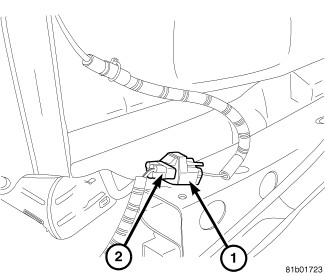

2. Connect license plate wire connectors (1) and (2).

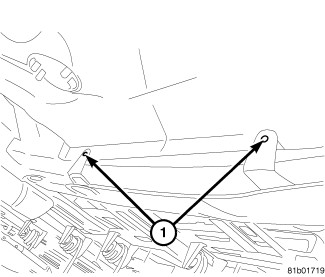

3. Slide rear fascia onto fascia locators (1).
4. Install fastener (2).
5. Install left and right splash shield push pins and fasteners.

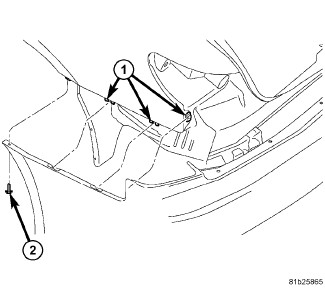

6. Install lower fascia push pins (1).
7. Lower vehicle.
8. Raise decklid.

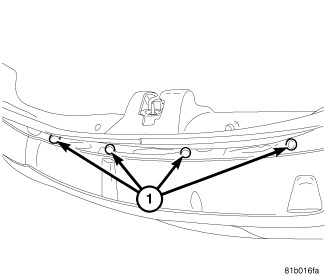

9. Install upper fascia push pins.
