Amplifier - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the cowl trim panel. Cowl Trim Panel - Removal.
3. Disconnect the wire harness connector.

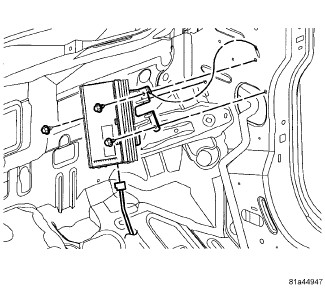

4. Remove the amplifier mounting fasteners.
5. Remove the amplifier.
