Link - Compression

  1. Raise and support vehicle. Refer to STANDARD PROCEDURE .
    Fig 1: Tire And Wheel Mounting
    GC0012971Courtesy of CHRYSLER LLC
  2. Remove wheel mounting nuts (3), then rear tire and wheel assembly (1).

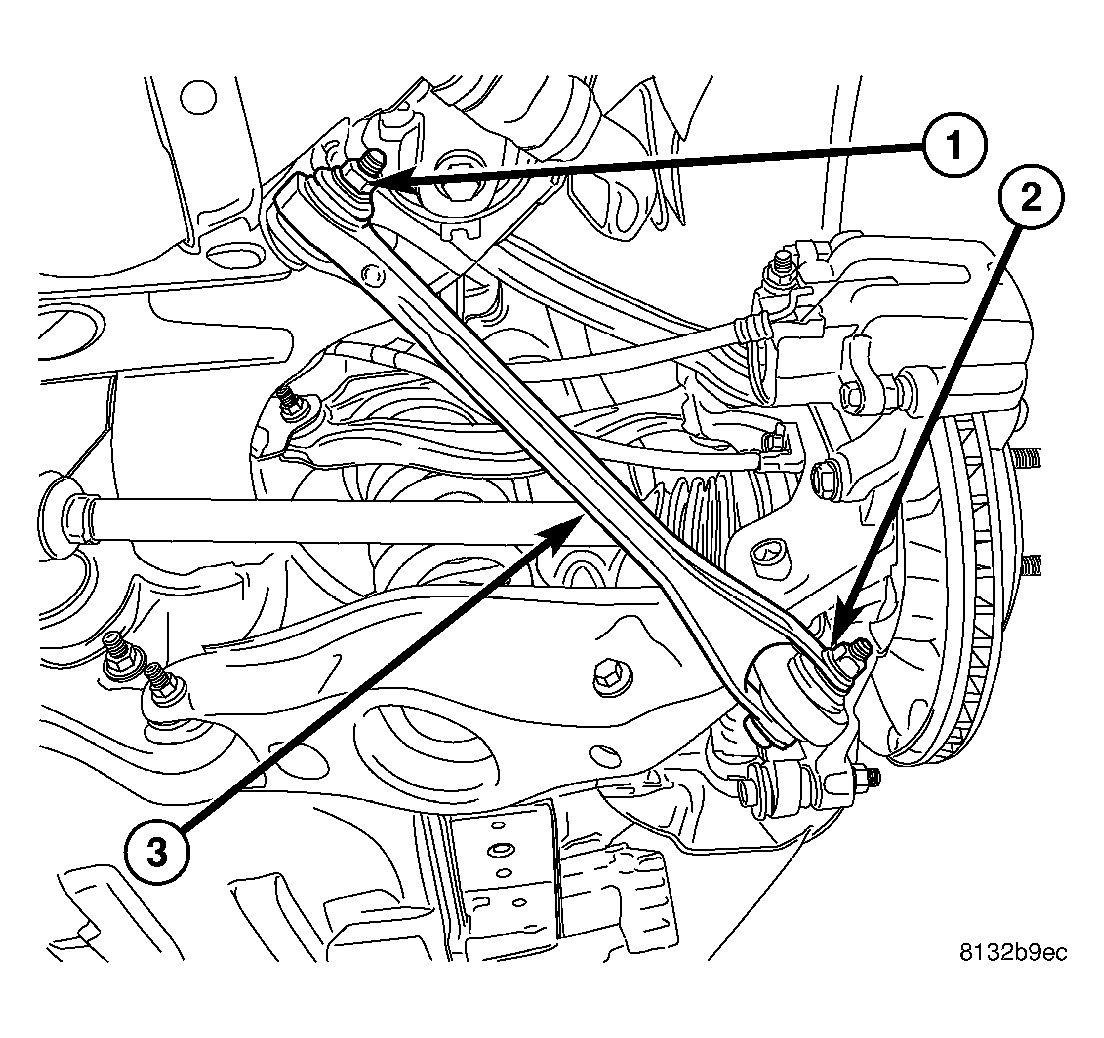

    Fig 2: Compression Link Mounting
    GC0012997Courtesy of CHRYSLER LLC
  3. Remove bolt and nut (2) mounting link (3) at knuckle.
  4. Remove bolt and nut (1) mounting link (3) at crossmember.
  5. Remove link (3).
