Shock Assembly - AWD

Raise and support vehicle. Refer to STANDARD PROCEDURE .

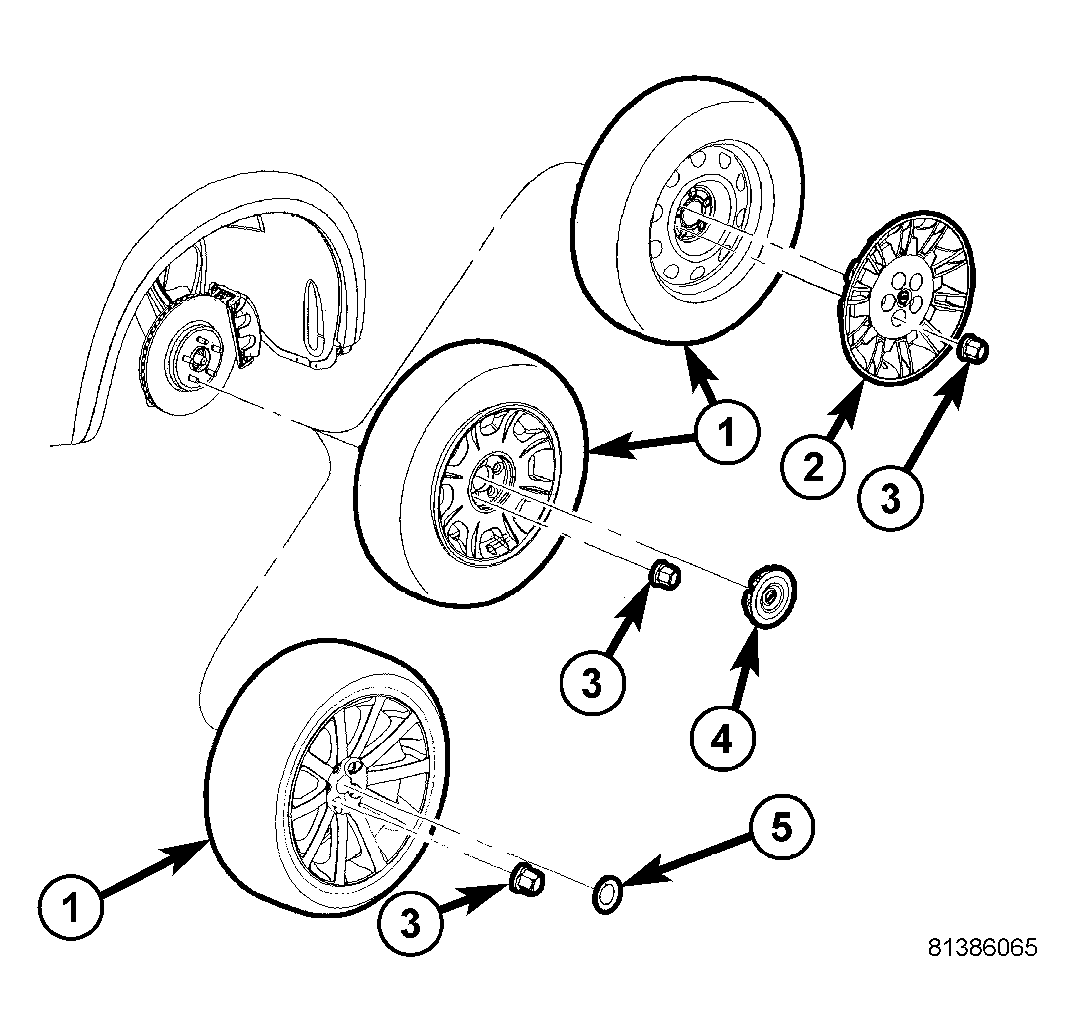

Fig 1: Tire And Wheel Mounting
Courtesy of CHRYSLER LLC
Remove wheel mounting nuts (3), then tire and wheel assembly (1).

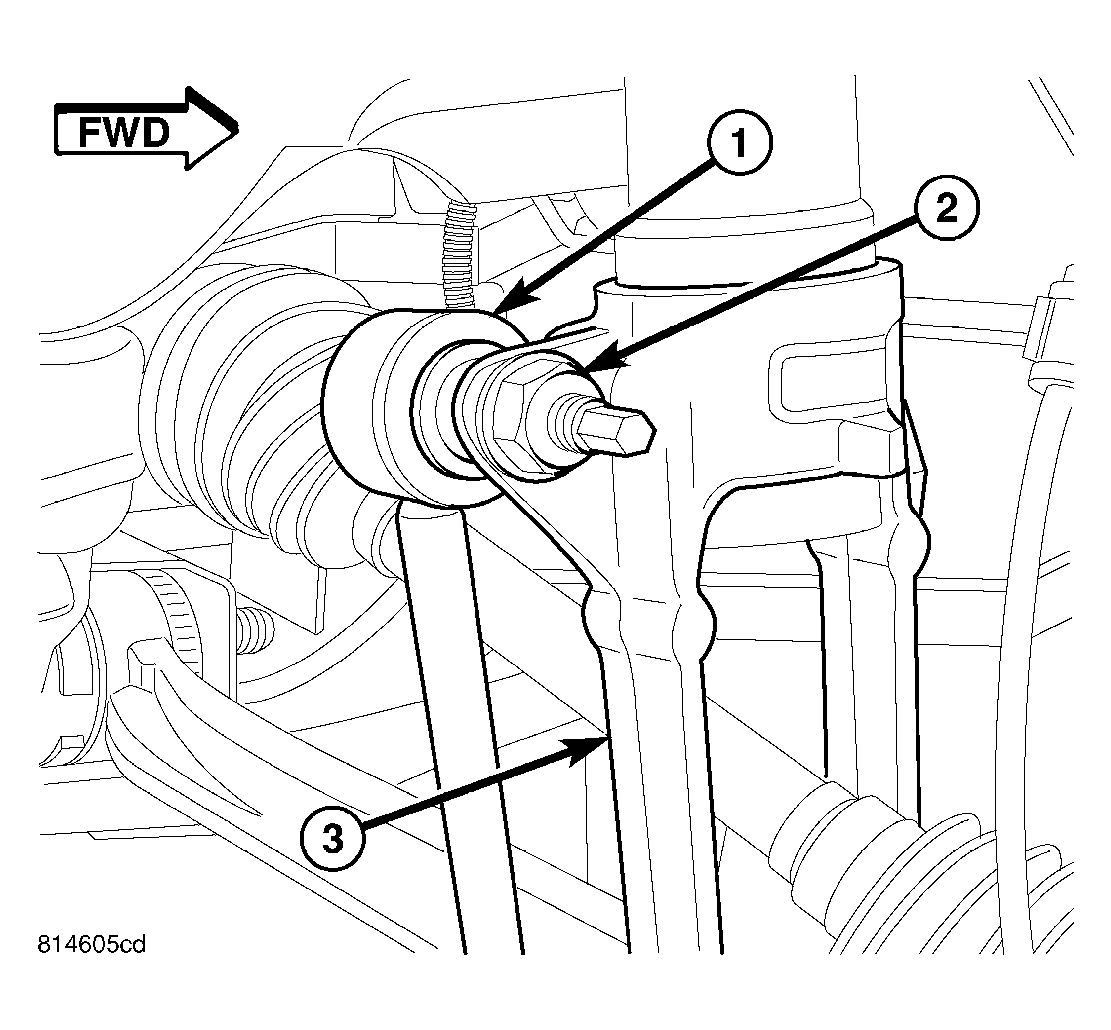

Fig 2: Locating Stabilizer Link Attachment at Shock Clevis
Courtesy of CHRYSLER LLC
While holding link ball joint stem from rotating, remove nut (2) fastening stabilizer link (1) to shock clevis bracket (3). Slide link ball joint stem from clevis bracket.

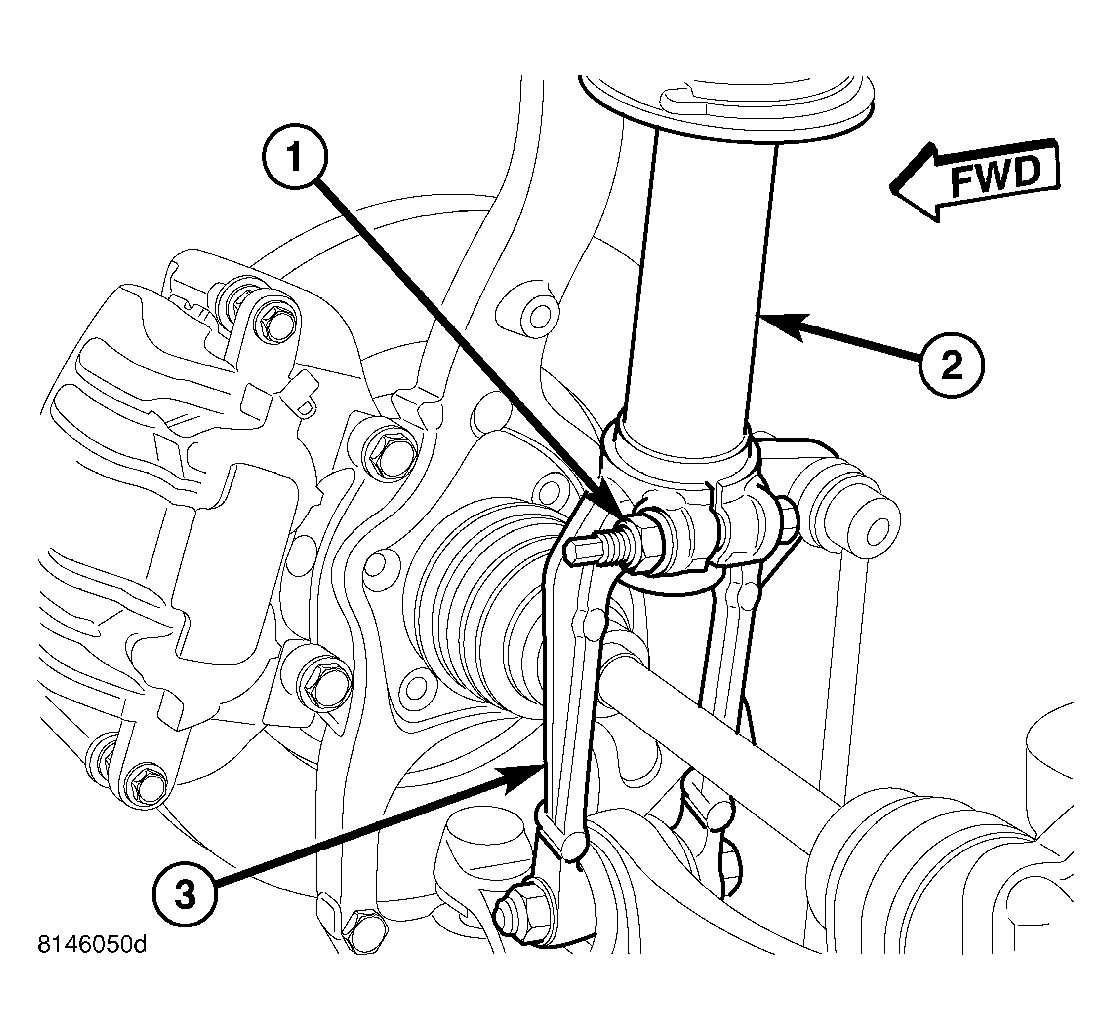

Fig 3: Removing/Installing Shock Clevis Pinch Bolt
Courtesy of CHRYSLER LLC
Remove nut and pinch bolt (1) fastening clevis bracket (3) to bottom of shock assembly (2).

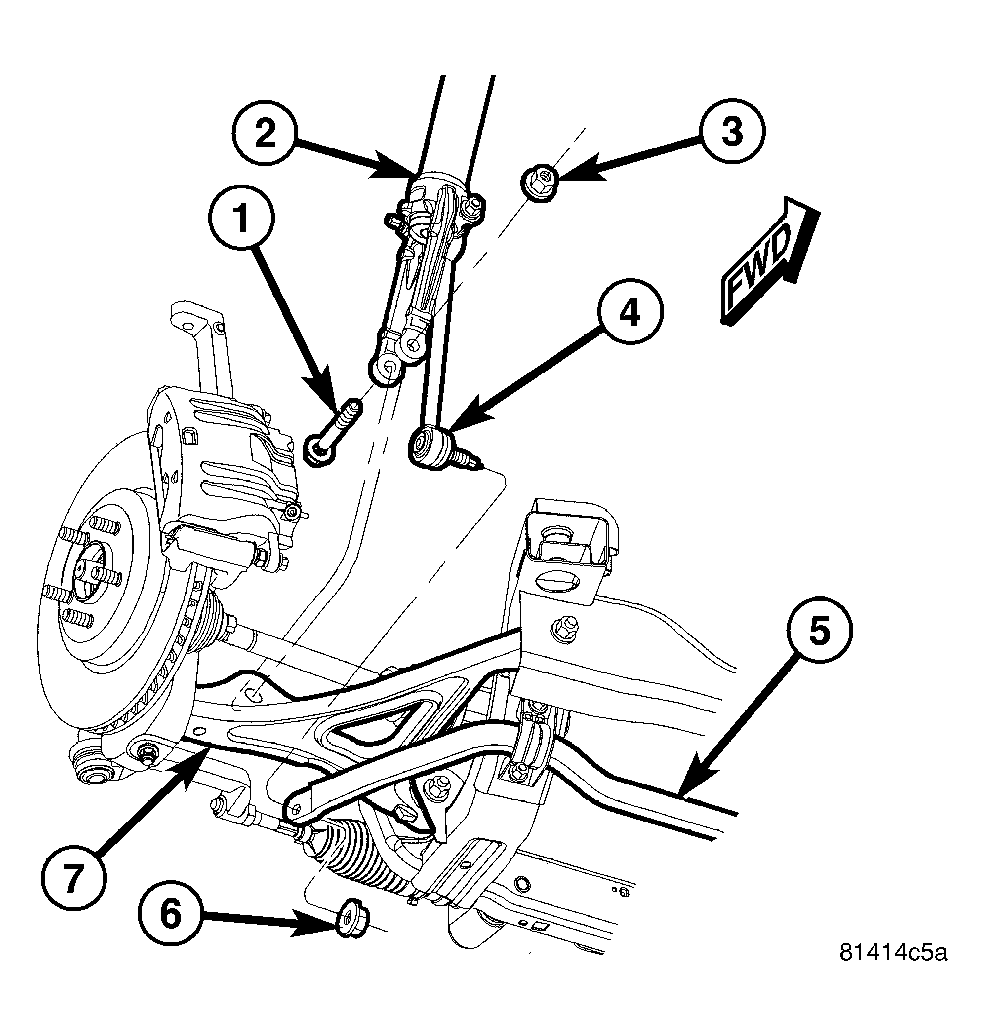

Fig 4: Shock Attachment at Lower Control Arm
Courtesy of CHRYSLER LLC
Remove nut (3) and bolt (1) attaching shock clevis bracket (2) to lower control arm (7).
Pull lower end of clevis bracket outward away from lower control arm bushing, then slide it off shock assembly. It may be necessary to use an appropriate prying tool to spread clamp area of clevis bracket allowing removal from shock assembly.

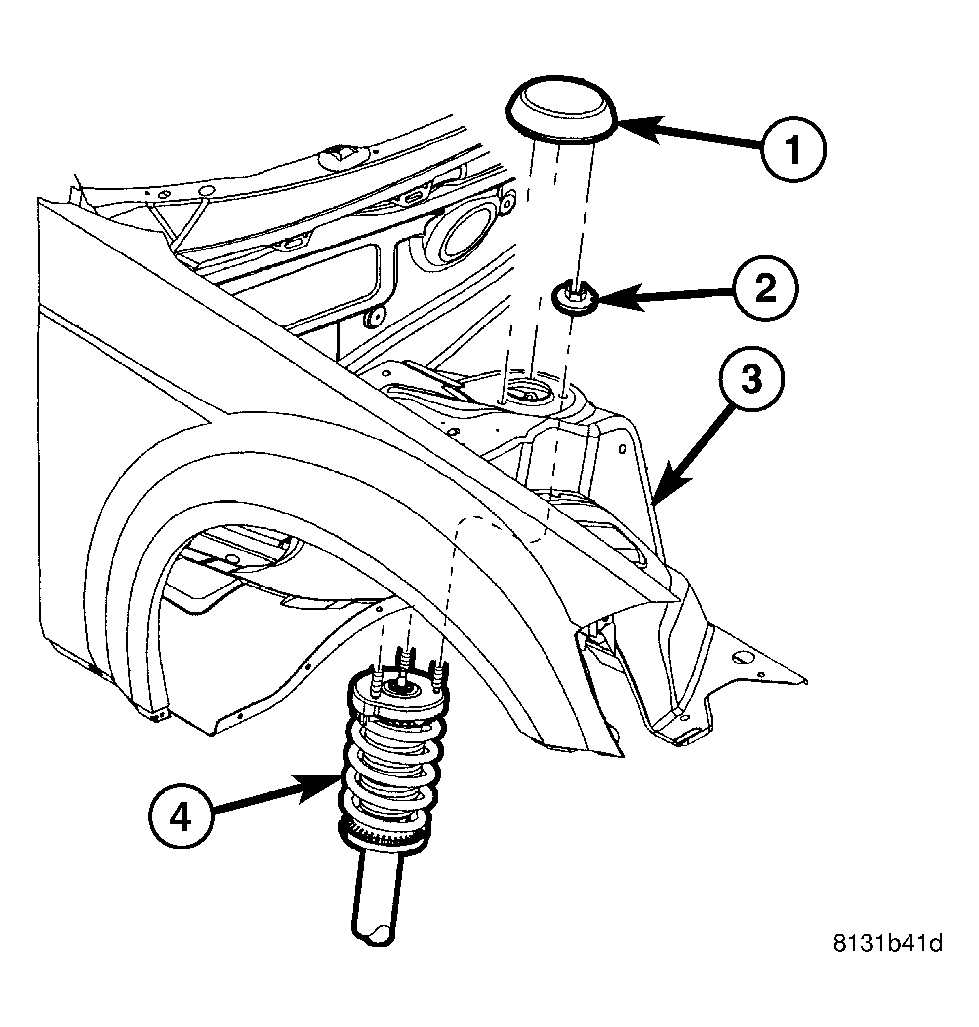

Fig 5: Upper Shock Mounting
Courtesy of CHRYSLER LLC
Lower vehicle just enough to access upper shock assembly mounting nuts (2).
If equipped, remove shock tower cap (1) from top of shock assembly (4).
Remove three nuts (2) fastening shock assembly (4) to shock tower (3).
Remove shock assembly from vehicle.
