Shock Assembly - RWD

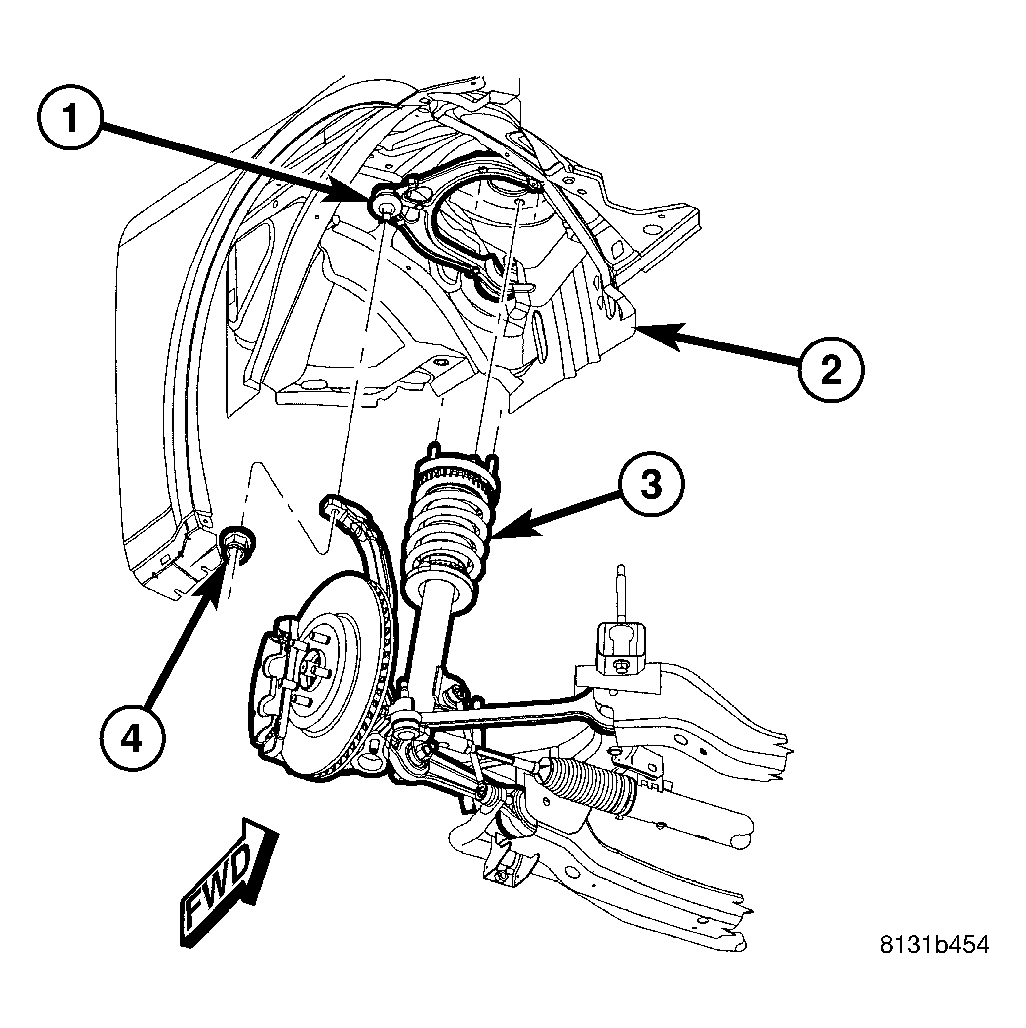

Fig 1: View Of Upper Ball Joint, Spindle & Strut Mounting

Courtesy of CHRYSLER LLC

Place shock assembly into front suspension using reverse direction in which it was removed.
CAUTION: It is important to tighten nut as described in following step to avoid damaging ball stud joint.
Place upper ball joint stud (1) through hole in top of knuckle and install nut (4). Tighten nut by holding ball joint stud with a hex wrench while turning nut with a wrench. Tighten nut using crow foot wrench on torque wrench to 47 N.m + 90° turn (35 ft. lbs. + 90° turn).

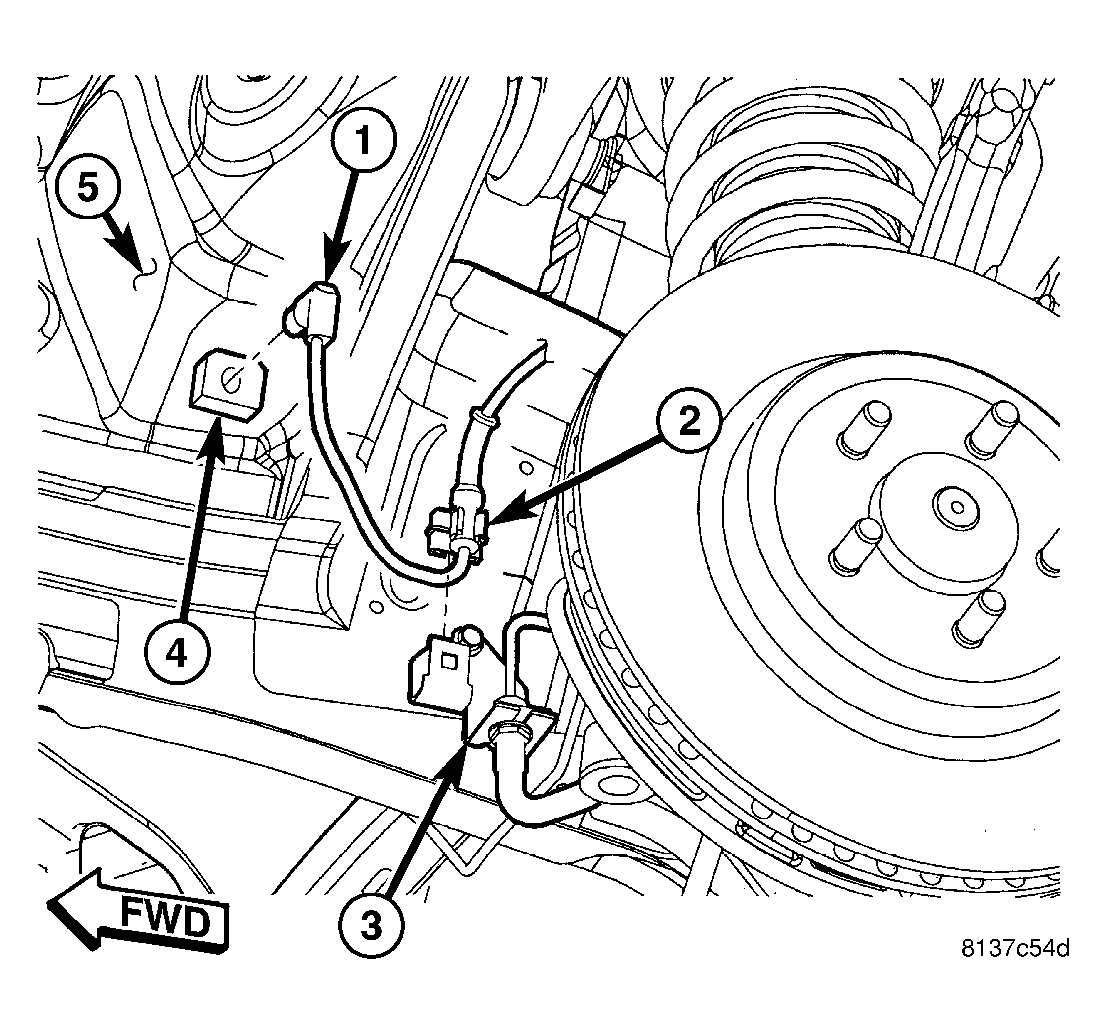

Fig 2: Locating Speed Sensor Cable Routing Clip At Brake Tube Bracket
Courtesy of CHRYSLER LLC
Connect wheel speed sensor cable routing clip (2) at brake tube bracket (3).

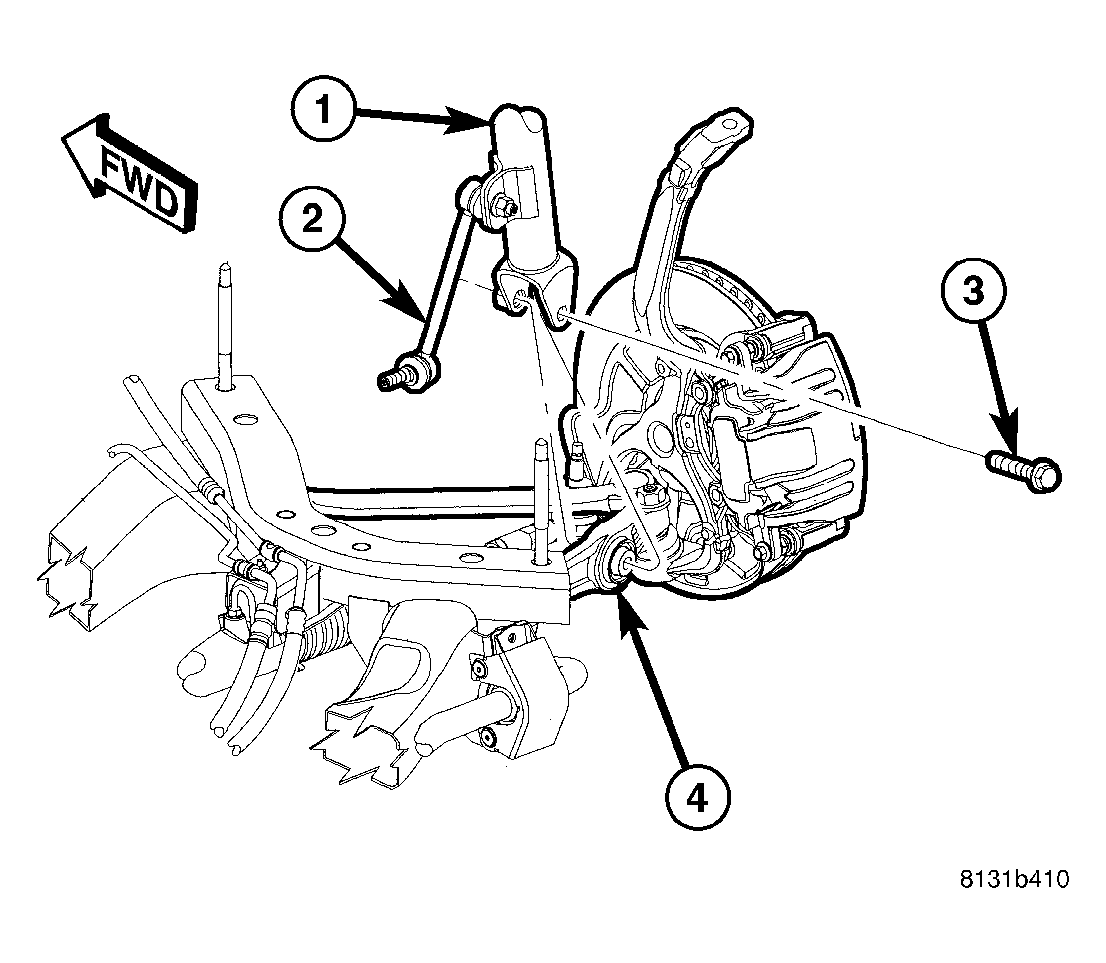

Fig 3: Lower Shock Mounting Bolt
Courtesy of CHRYSLER LLC
Install lower shock mounting bolt (3) attaching shock assembly (1) to lower control arm (4). Do not tighten bolt at this time.

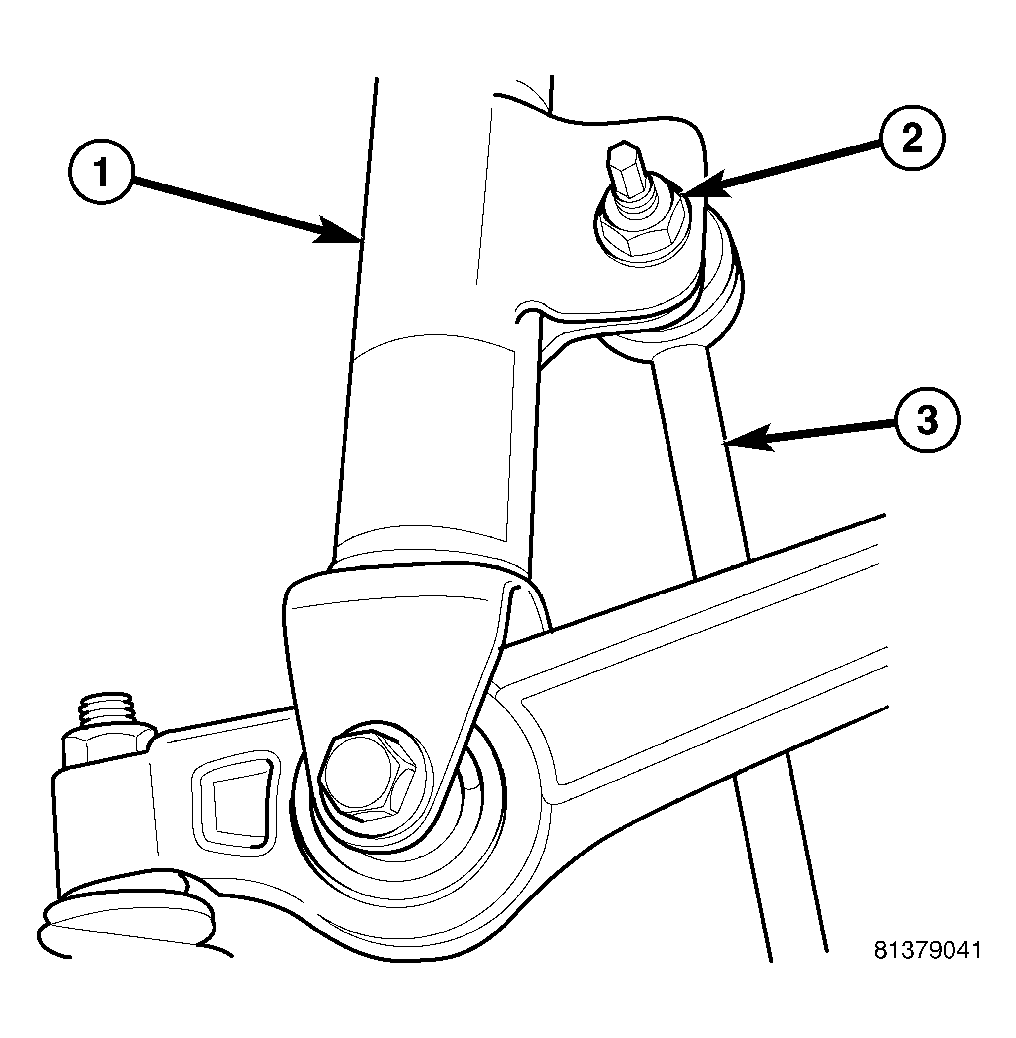

Fig 4: Stabilizer Link at Shock Assembly
Courtesy of CHRYSLER LLC
Slide stabilizer link (3) ball joint stem into shock assembly from front. Install nut fastening link (3) to shock assembly (1). Tighten nut by holding ball joint stud while turning nut. Tighten nut using crow foot wrench on torque wrench to 128 N.m (95 ft. lbs.).

Fig 5: Tire And Wheel Mounting
Courtesy of CHRYSLER LLC
Install tire and wheel assembly (1). Refer to INSTALLATION . Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) (Police - 190 N.m (140 ft. lbs.)).
Lower vehicle.

Fig 6: Upper Shock Mounting
Courtesy of CHRYSLER LLC
Install three nuts (2) fastening shock assembly (4) to shock tower (3). Tighten nuts to 27 N.m (20 ft. lbs.).
If equipped, align shock tower cap (1) with shock mounting nuts (2) and snap into place.
