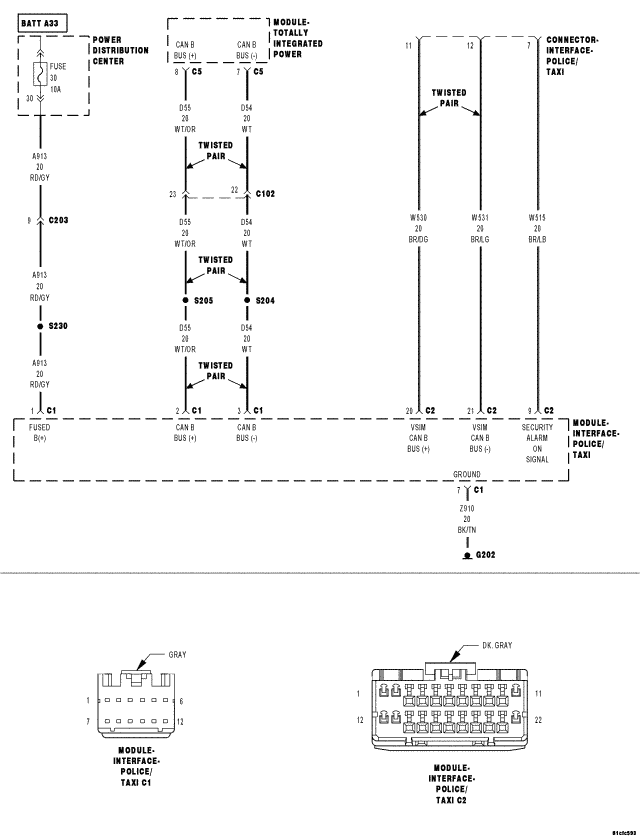

Home >> Dodge and Ram >> 2008 >> Charger SXT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Message Center - Electrical Diagnostics >> Message Center - Electrical Diagnostics >> DTC Troubleshooting >> B1A5E-Panic Alarm Activation Status Output Circuit High >> Circuit Schematic
