Circuit Schematic

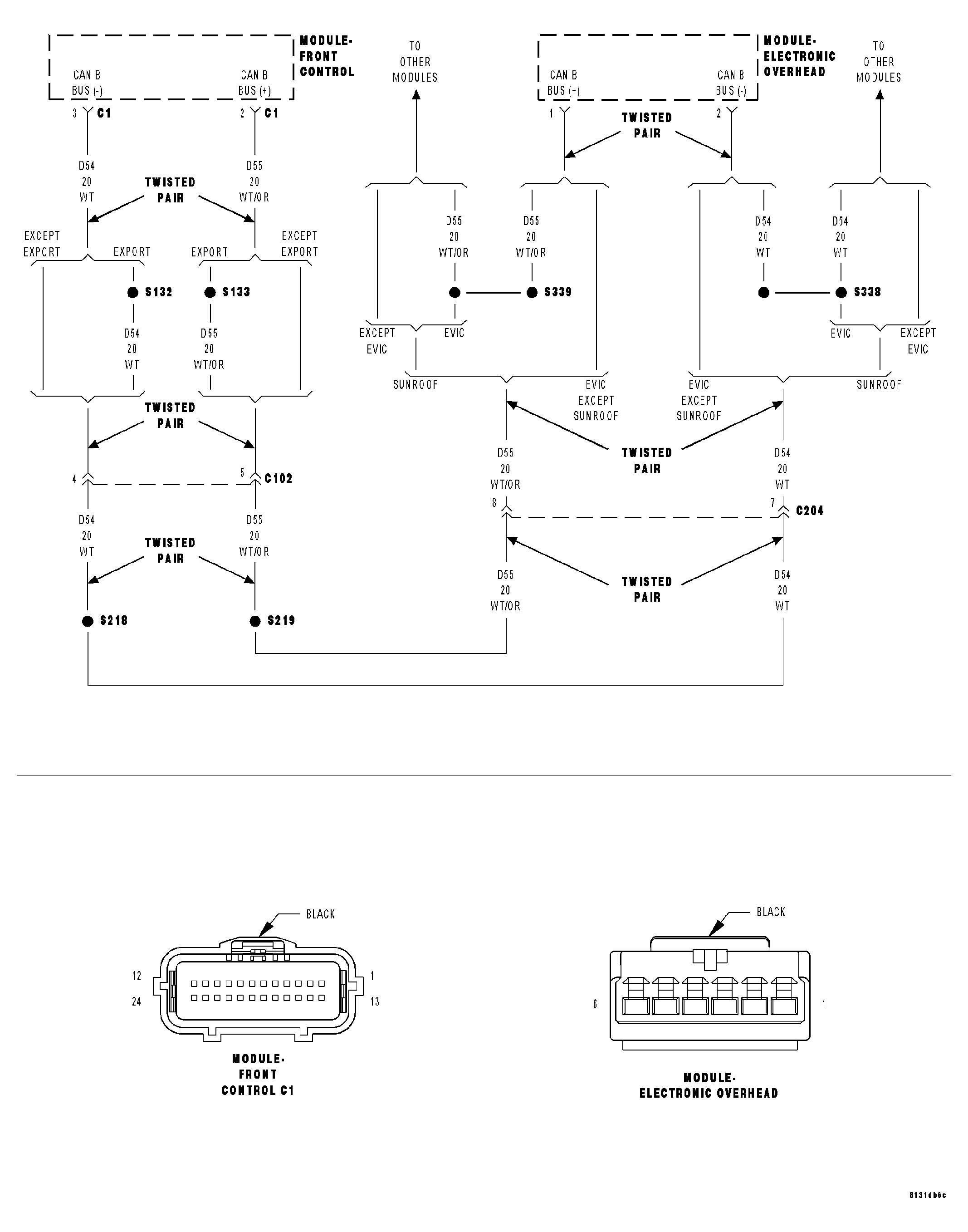

Fig 1: Electronic Overhead Module Communication Circuit Schematic

GC0016220

Courtesy of DAIMLERCHRYSLER CORP.
